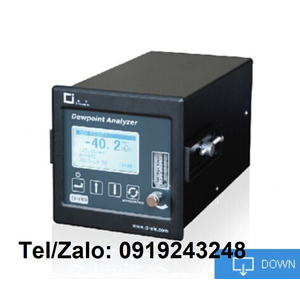

THIẾT BỊ ĐO NHIỆT ĐỘ ĐIỂM SƯƠNG CI-PC36

PROCESS DEW POINT ANALYZER CI-PC36V

 Technical Specifications

Measure Range:                  -80~+20℃； -60～+20℃; -60～+60℃; (Expand type: -100~+20℃)

Sensor Type:                       Polymer Capacitive Type;

Accuracy:                             <±2℃;

Application:                         Trace moisture analysis in inert, helium, hydrogen, mixed gas streams;

Approvals:                           ISO9001:2008;

Area Classification:             General purpose

Alarms:                                2 adjustable form C relay contacts non-latching;

Calibration:                          2 years each time;

Compensation:                   Barometric pressure and temperature; optional heated sample system and

                                            sensor housing;

Connections:                       1/4'' or 1/8'' lock type tube fittings;

Controls:                             Menu driven calibration, alarm and system functions;

Data Acquisition:                 Both ℃ & ppm unit purity display;

Display:                               Graphical LCD 128×64MM; resolution 0.1℃, display pressure, real time and

                                            date;

Enclosure:                          144(H)×144(W)×251(D)MM;

Flow Sensitivity:                  3~5L/min recommended;

Pressure:                            Inlet - regulate to 0.5~2 bar, Vent-atmospheric;

Power:                                Universal: AC110~264V AC, 50/60Hz;

Response Time:                 90% of final FS reading < 10 seconds;

Sample System:                 Flow control and sample/bypass valves; flow indicator;

Sensor Life:                        more than 36 months at 25℃ and 1 atm;

Signal Output:                     4~20mA isolated;

Temp. Range:                     0~50℃;

Warranty:                            12 months analyzer; 12 months sensor.

• Advanced membranne polymer capacitive principle;

• Calibration interval of two years;

• Dew point measure range -80℃ ~ +20℃.;

• Accuracy ±2℃ ;

• Withstands condensation;

• Fast response time;

• Easy servicing and data transfer via the RS232 or RS485 (optional) user interface;

• ISO 9001 QA System.

ParametersProduct featuresApplication field Ordering

• Industrial Specialty Gases;

• Heat Treating Furnaces;

• Air Dryers;

• Plastics Manufacturing;

• Chemical Manufacturing;

• Metallurgy;

• Compressed Air;

• Inert Atmosphere Blanketing;

• Li Battery Manufacturing.
